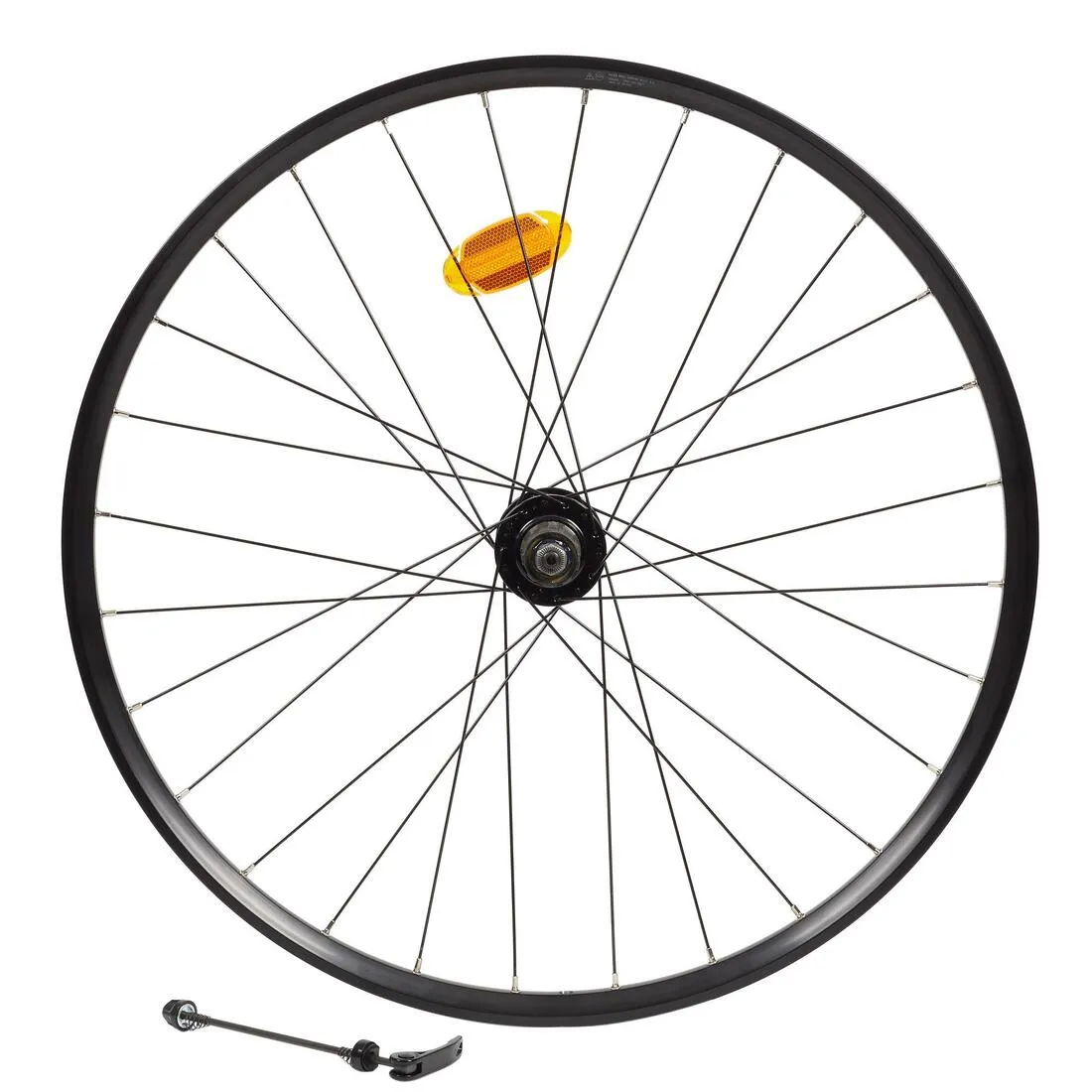

Designed to replace the wheel on your Rockrider ST 540 mountain bike

Technical features

ETRTO diameter: 584x23cType of rim: Double-walled / sleeved / 6063 aluminium / blackValve hole diameter: 8.5 mmNumber of spokes: 28Spoke material: Galvanised Steel / Black / 2 mmSpoke length: Left = 263 mm / Right = 265 mmAssembly type: 2-crossBearings: cup and cone bearing (1/4"")Brakes compatibility: DiscCompatibility: 7/8/9/10/11-speed cassetteOLD: 9x135 mmAxle length: 145 mmType of axle: QR

Wheel assembly advice

Respect the tightening torque on the disc, which is 6 Nm, and the tightening of the cassette, which is 40 Nm.Remember to apply light thread-locking fluid on the threads of the disc screws.

CARE TIPS

Regularly check the tension of the spokes and that your wheel is not bent. Do not use a high-pressure cleaner on the wheel bearings

Need Help?

The technicians at your Decathlon store workshop are available to help you replace your bike's parts. Feel free to ask them for help!

27.5’’ x 23c rear wheel for bigger tyres

Designed to replace the wheel on your Rockrider ST 540 mountain bike
