Designed for mountain bike rides all year round, from 2 to 3 hours long.
In a nutshell
Weight: 14.85 kg in size M (without pedals)Frame material: AluminiumType: HardtailWheel size: 29"" (M / L / XL), 27.5"" (S)Fork travel: 100 mmDrivetrain: 1x9Brakes: HydraulicSeatpost: SteelFrame, stem and handlebar warranty: lifetime
Weight
S: 14.5 kgM: 14.85 kgL: 14.95 kgXL: 15.05 kgNet weight without pedals
Frame
Composition: 6061 aluminium135 mm x 9 mm rear axleQR spindle73 mm threaded bottom bracket (BSA)Protective cover for housing27.2 mm seat tubeStraight head tube2 bottle cage mounts (1 on size S) / Pannier rack mounts
Drivetrain

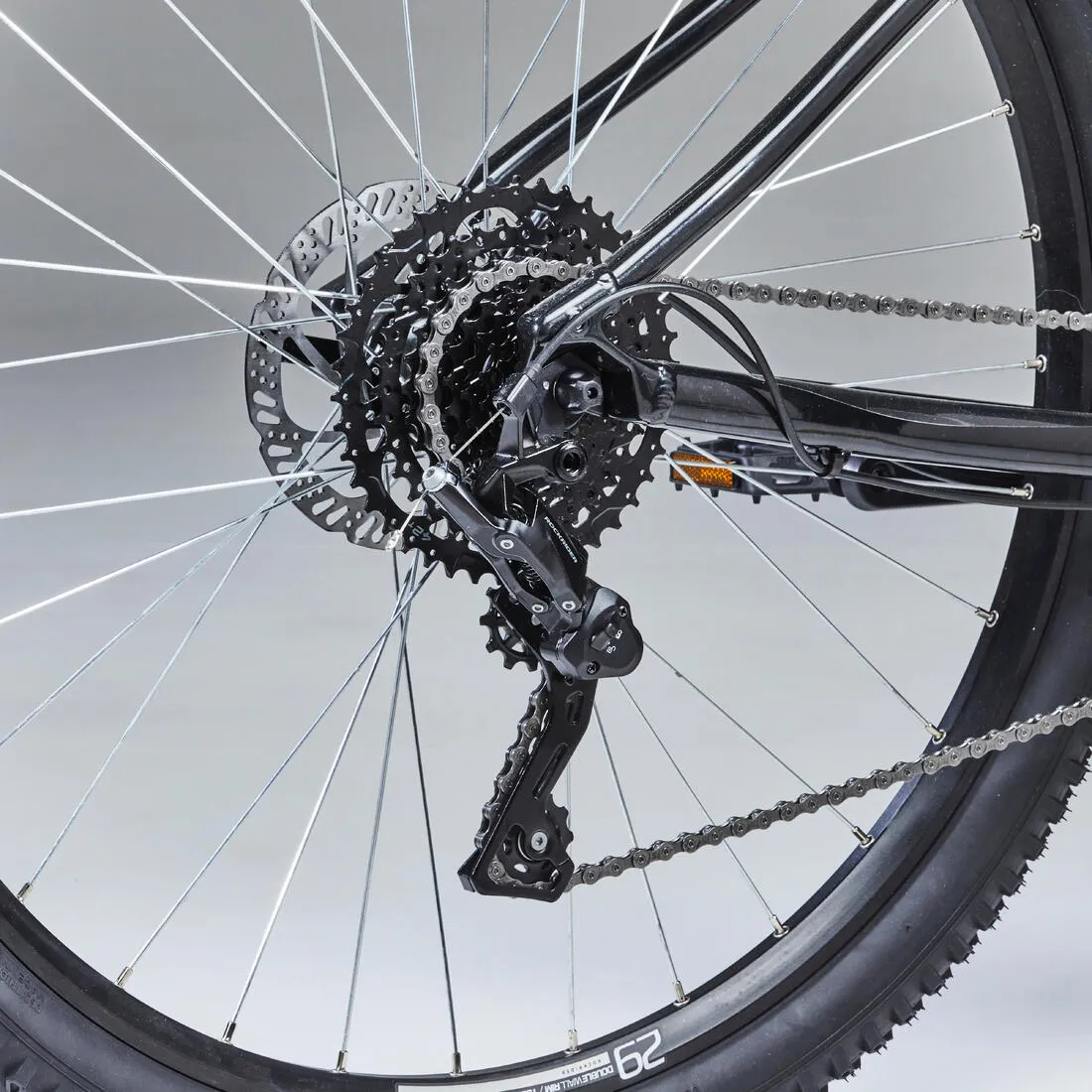

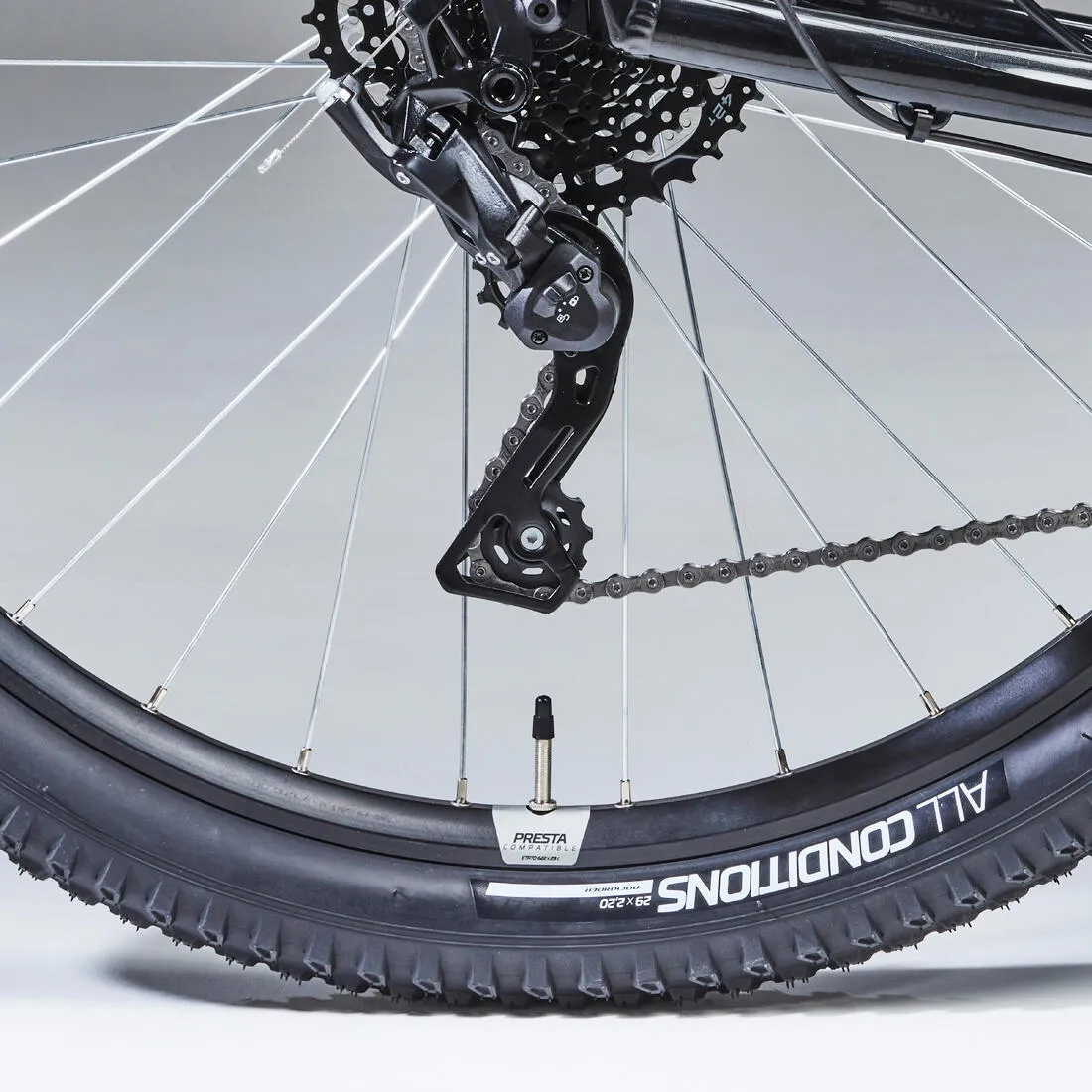

30 T single chainring (compatible with 32 T)175 mm crank""Square taper"" bottom bracketMicroshift Advent9-speed shifter and rear derailleur11-42 cassetteKMC Z9 chain
Suspension

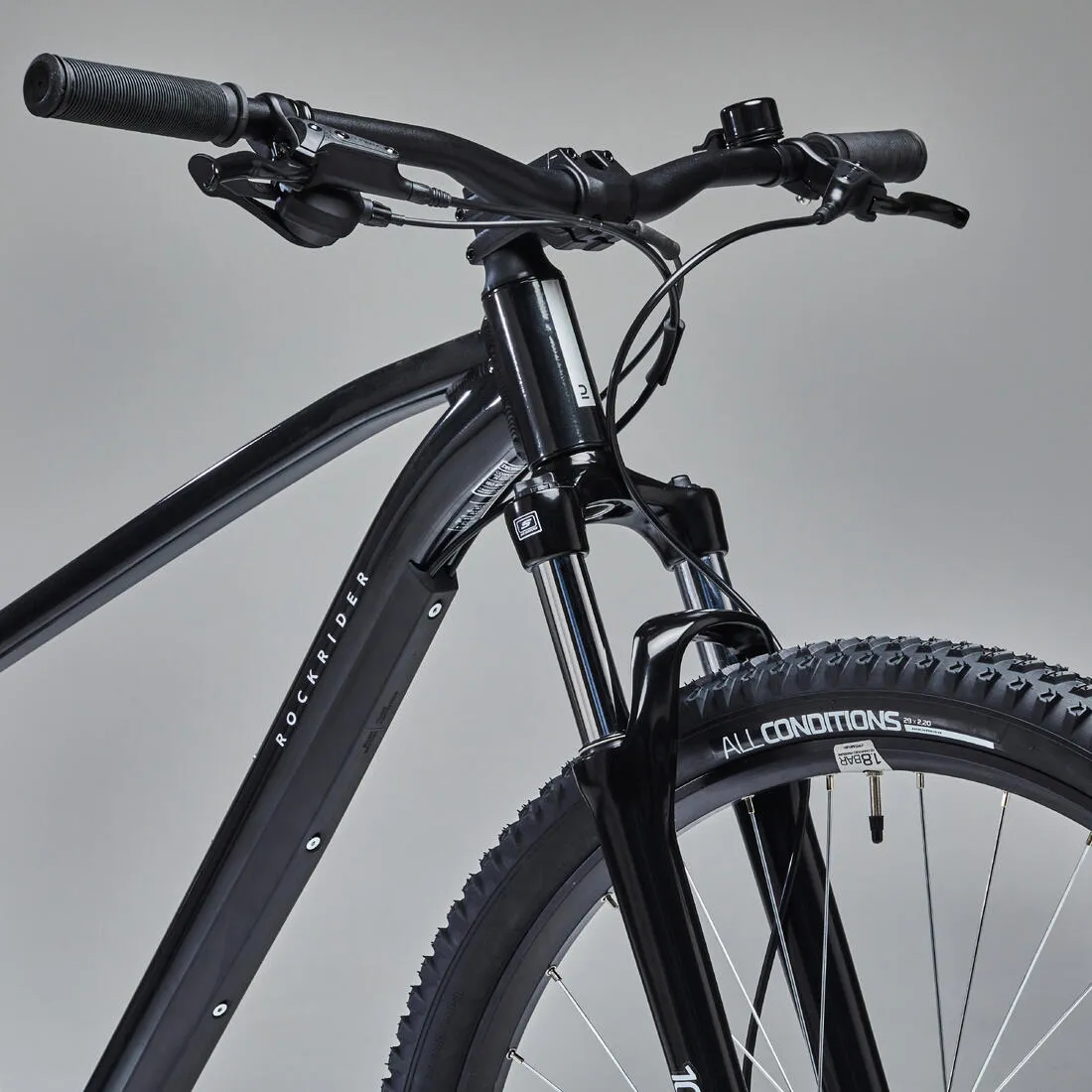

Suntour XCM forkCoil spring100 mm travelStanchion diameter: 30 mmQR axle9 x 100 mm
Wheels
29"" (M / L / XL), 27.5"" (S)Tubeless ready rims, Presta valve23 mm inner width (28 mm outer)32 spokes (M / L / XL), 28 spokes (S)6-bolt discShimano/Sram freehub
Brakes
Hydraulic disc brakesTektro TK-M276Number of pistons: 2Front disc: 160 mmRear disc: 160 mmAdjustable reach: Yes
Riding position

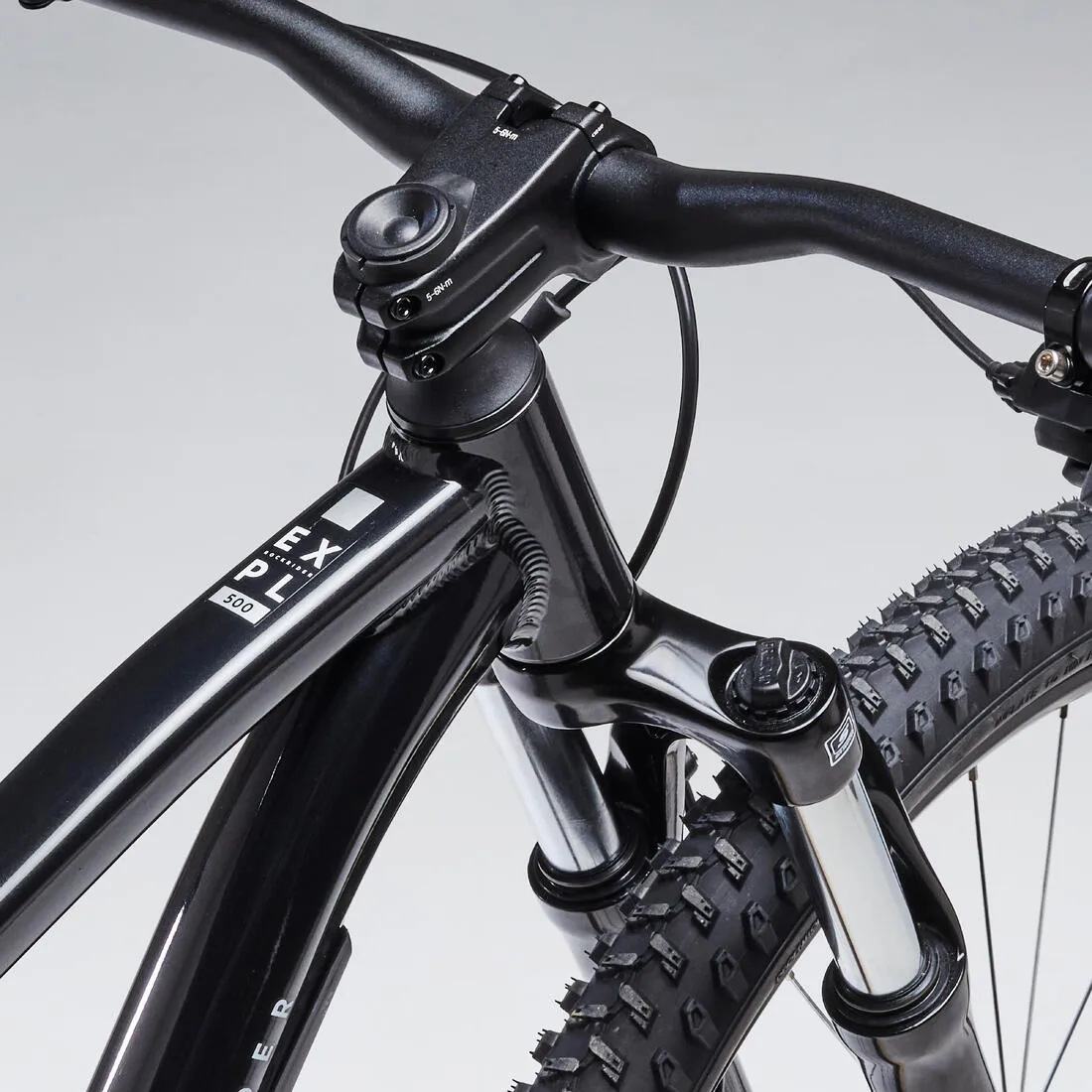

Handlebar: Rockrider SportMaterial: AluminiumWidth: 740 mm (M / L / XL), 700 mm (S)Stem: RockriderMaterial: AluminumSize: 60 mm4 adjustment increments: 0 mm, 5 mm, 20 mm, 25 mmGrips: Rockrider SPORT
/ Seat post
Rockrider Ergofit saddleRockrider Sport seat postMaterial: SteelDiameter: 27.2 mmLength: 350 mm (S / M), 400 mm (L), 450 mm (XL)
Tyre
Rockrider All Conditions29""x2.2"" (M / L / XL), 27.5""x2.2"" (S)Carcass: 60 TPI
Pedals
Rockrider 520 Grip resin flat pedals
ACCESSORIES INCLUDED
Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.

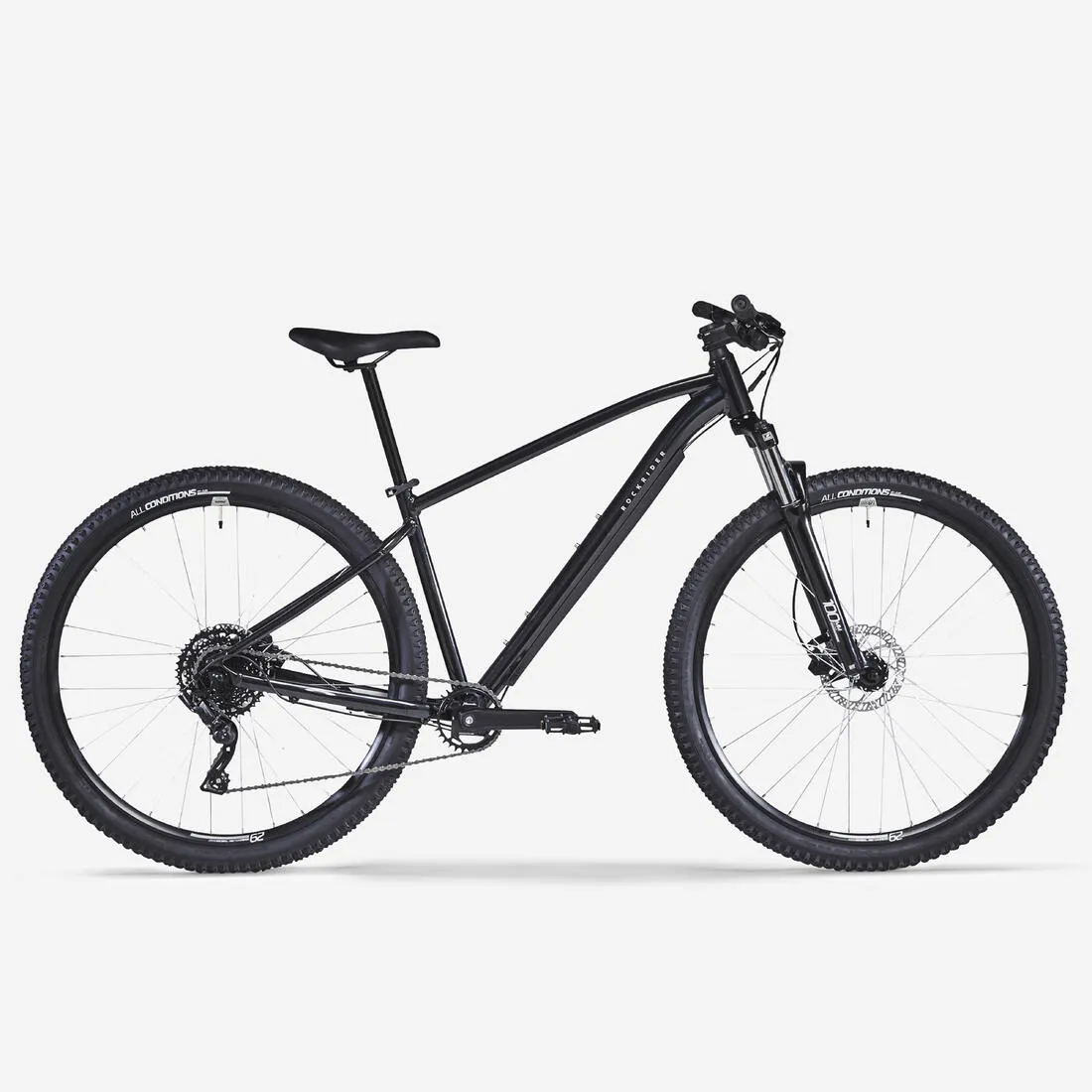

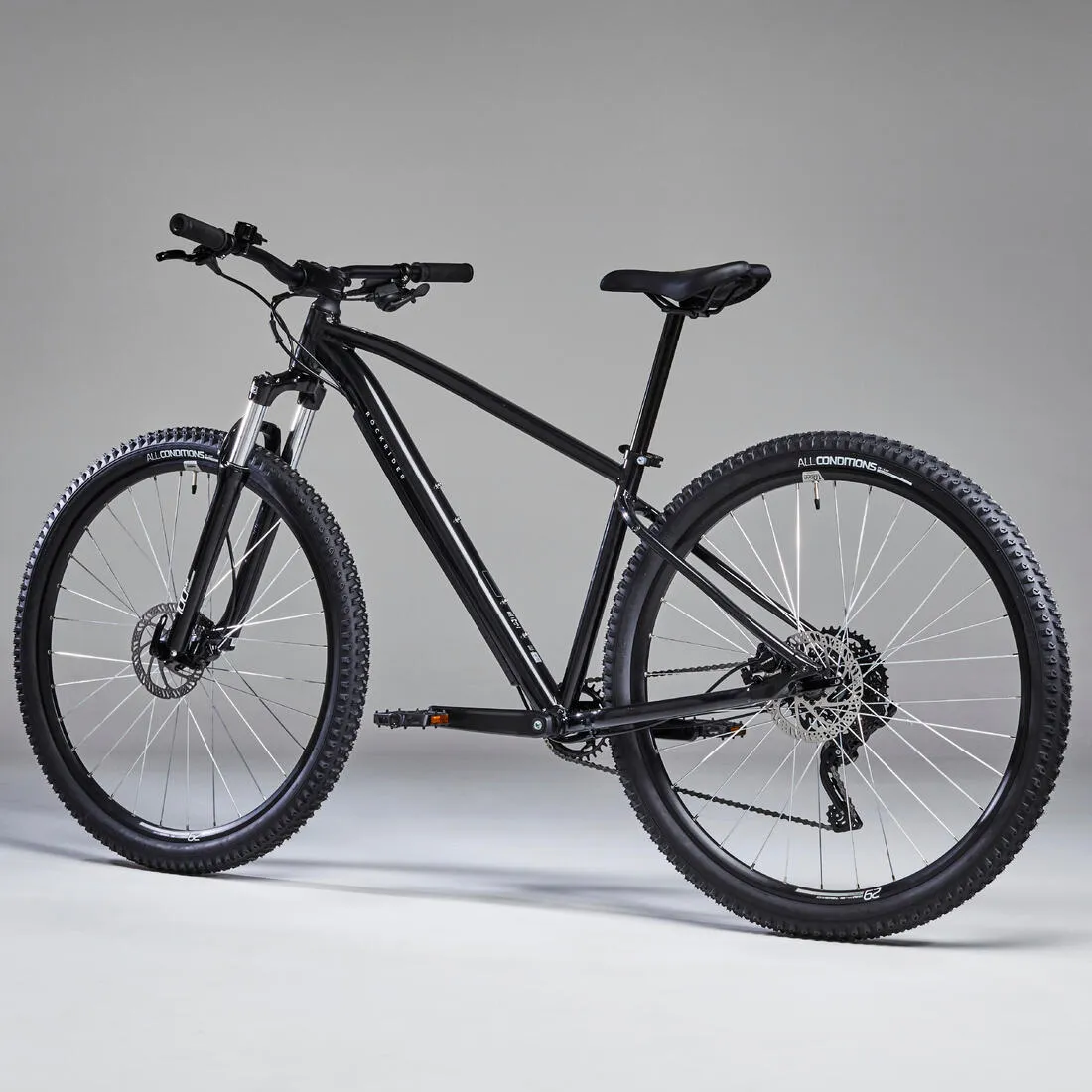

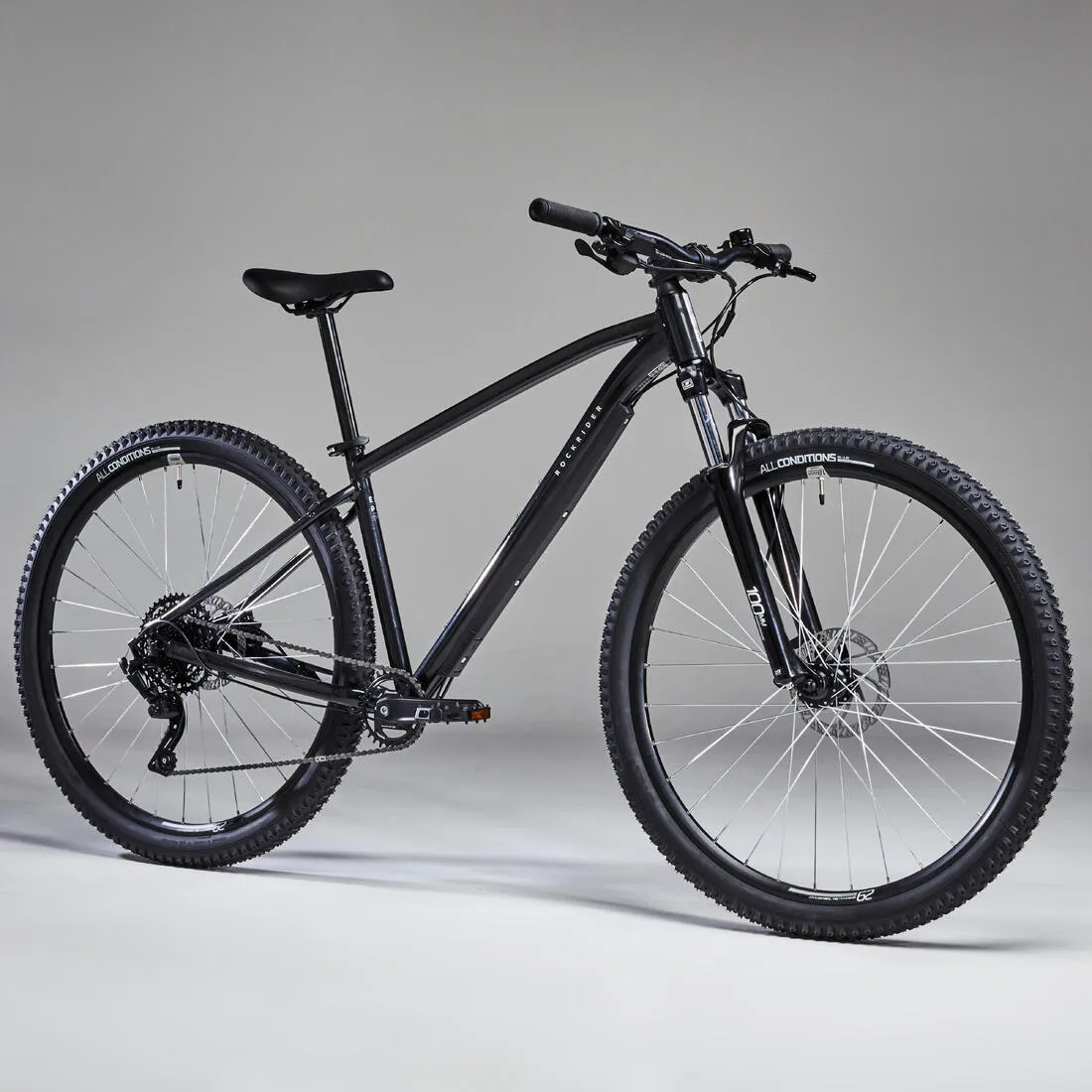

Comfortable and responsive to the terrain: the Explore 500 mountain bike’s 29’’ wheels (27.5’’ in S) single chainring and hydraulic disc brakes will revolutionise your mountain bike rides!
Ease of handling
Enjoy an upright position, adjustable stem, 100mm suspension and hammock saddle.
Efficiency
Lightweight alu frame, 29"" wheels (27.5"" in S), 9-speed single chainring
Ease of use
Adapt your speed with one hand, without thinking: single chainring drive train
Speaker
Manage your trajectory: hydraulic disc brakes, and wide tyres and handlebar.
Lifetime warranty
ROCKRIDER offers a lifetime warranty on the frame, handlebars and stem.
Designed for mountain bike rides all year round from 2 to 3 hours long.
